Overview

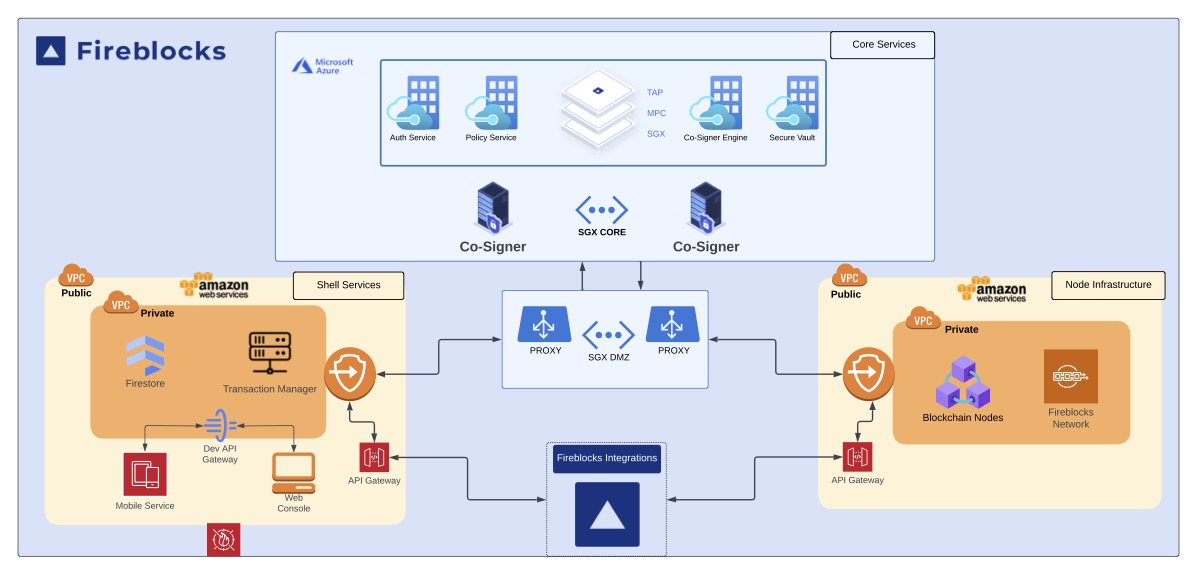

Multiple providers and components make up the Fireblocks cloud architecture.

Service providers

Fireblocks uses three cloud service providers: Microsoft Azure, Amazon AWS, and Google Cloud Platform (Firebase).

Microsoft Azure

Hosts core components used to handle and store sensitive information, such as key share material, configurations, policy rules, and API credentials
Securely stores data using SGX Confidential Enclaves

Amazon AWS

Hosts various gateway and frontend services
Does not store any secret cryptographic material, such as API keys and MPC key shares
Orchestrates messaging between frontend and core components

Google Cloud Platform (Firebase)

Acts as the caching database for the Fireblocks Console and the Fireblocks mobile app
Enables efficient data delivery

Fireblocks provides a highly available (active-active and active-passive) cloud infrastructure by using multiple tier-1 cloud providers. Two co-signers are hosted on the Fireblocks SaaS cloud environment. The third co-signer is either your mobile device or a self-hosted server (in your cloud environment or your on-premises data center). It is suggested to introduce high availability (HA) and disaster recovery (DR) using the Fireblocks Backup and Recovery procedures for a self-hosted co-signer.

System components

Fireblocks uses several components in the Fireblocks cloud architecture.

Mediation Layer (API gateways and event orchestration)

Consists of frontend services, API Gateways, and message queues
Orchestrates events between client applications and core components
Does not store or manage sensitive data

Transaction Signing Modules (co-signers)

Securely stores MPC private key shares and signing transactions
Integrates with your core services using a programmable interface
Stores and manages sensitive data

Core Components

Executes core Fireblocks services and modules
Stores and manages sensitive data

Trusted Shared Services

Executes shared core Fireblocks services and modules, including the Fireblocks Network
Stores and manages sensitive data

Blockchain Nodes Infrastructure

Connects various supported blockchain networks and broadcasts signed messages
Consists of both public and private (if any) networks
Easily scales vertically and horizontally and contains various code optimization to provide efficient execution
Does not store or manage sensitive data

Disaster Recovery Services

Recovers all your assets in case of disaster
Provides reconstruction of the extended ECDSA and EdDSA private keys (xprv+fprv)
Should be stored on an offline air-gapped machine with hardened access permissions
Should not be used on a regular basis since reconstruction of the extended private keys introduces a single point of compromise
